4 IO Embedded ARM Board 1GB DDR3 8GB EMMc LVDS USB Host 500W Pixels DVP Camera

Brand Name : ADW

Model Number : AD-Z33L

Place of Origin : China

MOQ : 1

Price : USD45~USD70/pc

Payment Terms : T/T, Western Union

Supply Ability : 1,000,000pcs per month

Delivery Time : 1~3days if have stock, 30 days if out of stock

Packaging Details : 1pc/bubble bag, proper qty in a carton

CPU : Rockchip3188 Quad core

Frequency : 1.6GHz

diaplay interface : LVDS(single, 6 dual, 8 dual)

EDP screen interface : support resolution 1920*1080P

Touch screen : I2C interface

internet : RJ45 interface, support 10M/100M Ethernet

OS : Android 4.4 or above

EMMC : 8GB,16GB,32GB optional

Contact Now

Android Embedded ARM Board with 1GB DDR3 8GB EMMc LVDS USB Host

Summary:

RK3188 Android all in one board, using Rockchip RK3188 quad-core chip program, support Google Android 4.4 system. Support the mainstream audio and video formats and picture decoding. Dual 8-bit LVDS interface 1920 * 1080, can drive 7 "to 82" display. Exclusive support for 3G module Internet access, rich interface, so that products become more common, widely used in advertising machines, one machine, security, industrial control, and so on intelligent control. Because of its hardware platform, Android intelligent features, in the need for human-computer interaction, network equipment, interactive, intelligent terminal platform can be used.

Feature:

High performance. RK3188 chip using quad-core A9 program, is currently on the market one of the most powerful quad-core chip. Using the chip RK3188 motherboard program, compared to the common market of single-core, dual-core, quad-core program, a qualitative leap in performance, able to play a variety of formats high-definition video, can handle complex interactive operation.

High stability. RK3188 Andrews board, in hardware, software, to increase their own unique technology to ensure product stability, can make the final product to 7 * 24 hours unattended.

Highly integrated. RK3188 Andrews integrated board integrated Ethernet, wifi, Bluetooth, amplifier, SD card, 3G data interface, backlight power supply and so on, greatly simplifying the machine design. Ultra-thin motherboard design, make the machine design more beautiful.

High scalability. 4 USB HOST, 3 serial ports, can expand more peripherals.

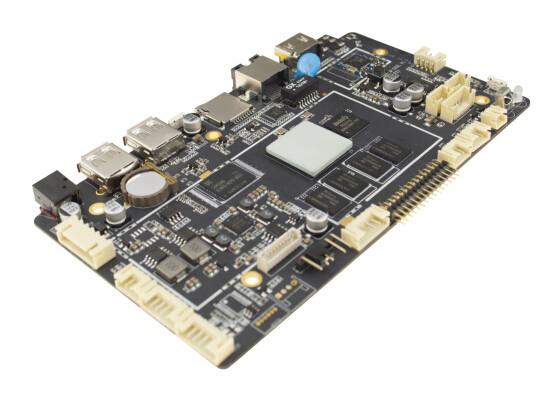

Product picture

4 IO Embedded ARM Board 1GB DDR3 8GB EMMc LVDS USB Host 500W Pixels DVP Camera

Basic hardware specifications:

CPU	Rockchip RK3188 quad core Cortex-A9 quad core GPU Mail-400 @ 533MHz
Frequency	1.6 GHz
RAM	DDR3 1G/2G Optional
Built-in storage capacity	EMMC FLASH 8GB/16G/32G Optional(Label 8GB, available NAND)
Display interface	LVDS interface (single, 6-way, 8-bit dual). Support maximum resolution 1920x1080, support 7 "-82" display
Mainboard backlight	Support 3.3V / 5V / 12V optional
Touch screen	Provides I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound wave touch, multi-point optical touch.
Internet	With RJ45 interface, support Ethernet.
Internet	With wifi & BT module, support Wi-Fi 802.11b / g / n protocol. Support BT4.0
Image rotation	Support 0 degrees, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function
Real Time Clock	Built-in real-time clock powered battery
System watchdog	Support software, hardware watchdog
Interface device	Support DVP interface camera, the maximum support 500W pixels
	Support USB camera
	4 USB HOST,1 USB OTG
	3 groups of serial ports. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
	4 IO detection port
	SD card, maximum support 32GB
	D class Large built-in speaker,3W*2 8R
	Support microphones
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP format
Video	Support H.264, VP8, RV, WMV, AVS, H.263, MPEG4 and other video formats 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash10.1 play
Picture	Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter	Input:AC100-240V.50-60HZ, Output: DC12V 3A

Basic software specifications:

Operating system	Google Android 4.4
Basic software functions	Web browsing, web chat, e-mail, e-books, and resource managers
Sound mode	Clock, alarm clock, calculator, recording
Language support	Multi-lingual
Recording	Support MP3, WMA format recording
Tool	Calendar
	Alarm Clock
	Calculator
	Note
	Weather + clock
	Record
Document processing	EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT
Ebook	PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2
Schedule	Calendar
Input method	Standard Andriod keyboard, optional third party input method (Chinese, Korean, Japanese, etc.)
Internet	Browser -ChromeLite
	GOOGLE Market
	Email
	Gmail
	Google talk
System Management	APK Installer
	The original eco-Android system, open root privileges, can be customized product development
	Real-time remote monitoring, system crash since recovery, 7 * 24 hours unattended
	System setting
	Google Maps
	Global time
	Support OTA remote upgrade

4 IO Embedded ARM Board 1GB DDR3 8GB EMMc LVDS USB Host 500W Pixels DVP Camera
